Shifting ContRoll Quickshifter sensor - Pull/Push
The perfect switching impulse for your setup.
The Shifting Control Sensor allows you to add to your compatible quickshifter system or replace an existing sensor. Choose between pull or push configuration and the appropriate connector for your setup.
Important: Clutchless upshifting requires a suitable quickshifter module or control unit. The sensor alone does not replace the control electronics and does not provide an automatic rev-matching function.

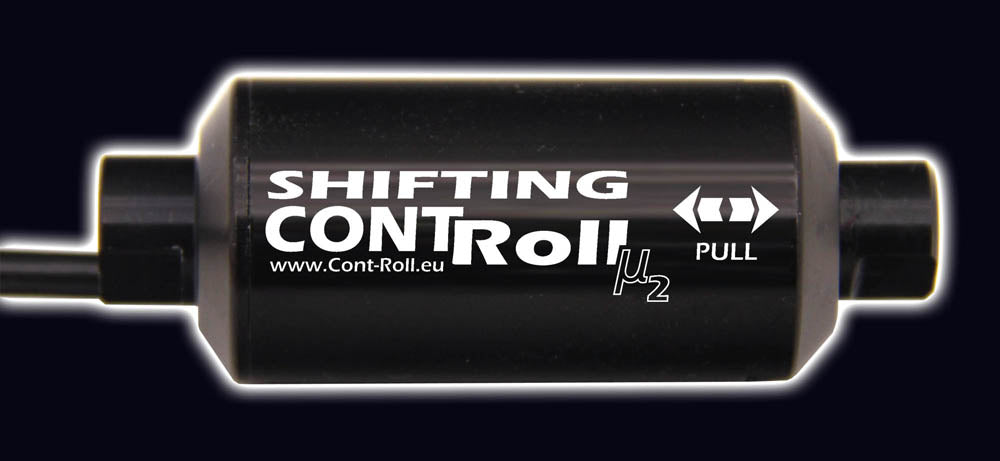

Pull or push?
- Pull/Zug: The shift linkage pulls on the sensor when shifting up.
- Push/Pressure: The shift linkage presses on the sensor when shifting up.
The required version depends on the actual load on the sensor, not solely on whether it's a standard or reverse polarity connection. Before ordering, also check the installation length, thread type, and connection type.
Technical details
- High-strength, anodized aluminum alloy
- M6: Right-hand thread/combined right- and left-hand thread
- Length Pull: 49.5 mm; Push: 50.5 mm
- Weight: 35 g
- Release force is factory preset.
Connections & Settings
Select above: Open Cable, Shifting ContRoll Molex, Bazzaz, Cordona, Healtech, Ignitech, Power Commander III, Power Commander V or Zeeltronic.
The connection type is not a universal vehicle approval. Settings and interruption times must be compatible with the motorcycle and system. Connection diagrams are manufacturer examples; for different hardware, refer to the documentation for your specific device.
Open cable/Shifting Control
Open leads for individual integration or 2-pin Molex connector. Do not apply supply voltage to a switch input. If the pinout is unclear, ask before connecting.
Bazzaz
3-pin connection variant for suitable Bazzaz systems.

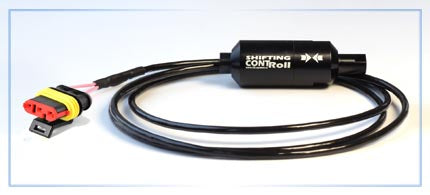

Cordona
3-pin SuperSeal connector for suitable Cordona systems.

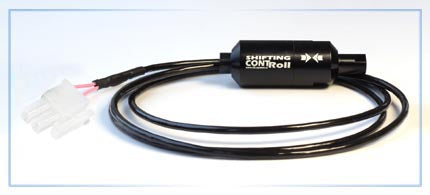

Healtech
Adjust sensor settings in the Healtech software.

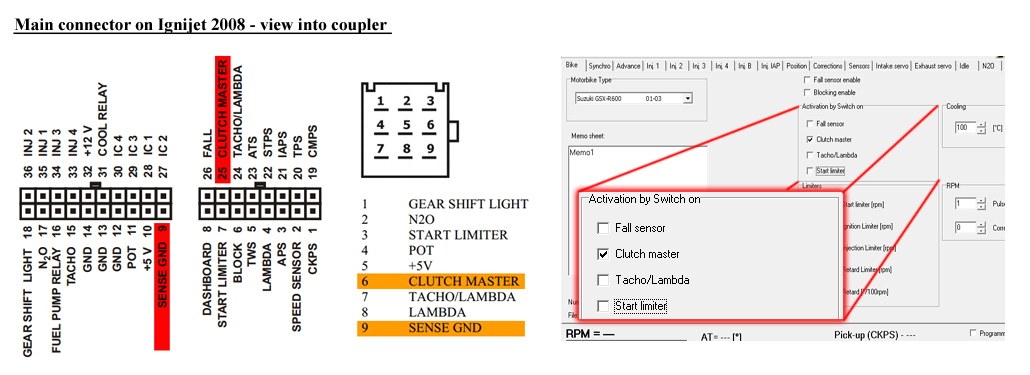

Ignitech
For Ignijet, TCI-P and CDI-P with quickshifter support. Activation according to the manufacturer: "Activation by Switch On".
Be sure to check the pin assignment according to the model and version. The graphic is not a universal wiring diagram for all Ignitech control units.

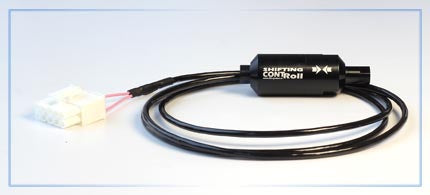

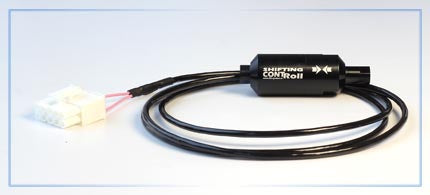

Power Commander III
PC III USB/Dynojet Ignition Module: All injectors must be controlled accordingly for the system to function.
PC III USB Control Center - Manufacturer Download (ZIP)
Shift Kill Enable - Manufacturer download (ZIP)
These are older manufacturer downloads. Check the version and compatibility before installation; do not install firmware on a hunch.

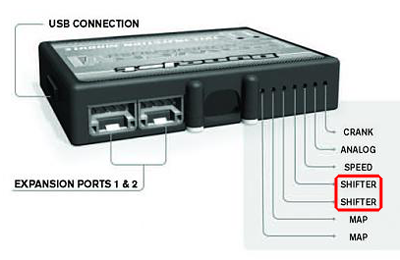

Power Commander V
Two wires to the "SHIFTER" inputs; according to the manufacturer, no polarity requirement.

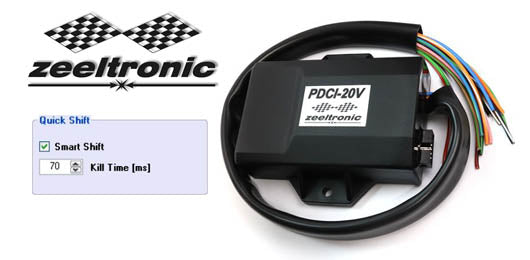

Zeeltronic
Connection to suitable programmable ignitions with switching interruption.
Assembly & separate variants
Shift rods - separate
Separate accessories for adjusting the installation length; not included in this sensor assembly product.
Bidirectional sensor - separate product
Tension and compression in one sensor. Not the pull/push type offered here.
